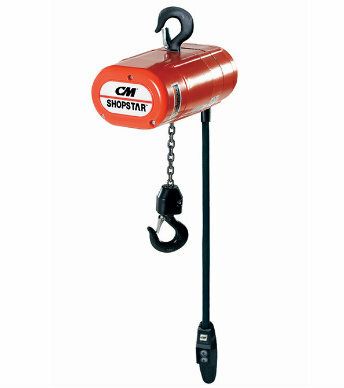

CM Shopstar Electric Chain Hoist 300 lbs

300 lbs Shopstar CM Electric Chain Hoist 2047

The CM ShopStar electric chain hoist with 300 lb lift capacity is built for rugged industrial and commercial use. This durable hoist features high H4 duty cycles and a compact design ideal for use at workstations and production lines. Standard overload device protects the CM electric chain hoist, operator and surrounding structure from damaging overloads.

CM Shopstar Electric Hoist 2047 with 300 lbs Capacity Features & Benefits

• H4 duty cycle (300 motor starts/hour)
• Easy installation and maintenance
• Standard protector overload device
• 10 pocket oblique lay liftwheel provides longer chain wear
• Epoxy powder coat finish
• 6-1/2 ft. power cord with molded 3 prong plug on 115 volt units
• NEMA 4 industrial rated control station
• Optional impact-resistant chain container available
• Gear train lifetime lubricated with non-oxidizing grease
• CM Hoist Alloy Load Chain (zinc plated optional)
• Thermally protected hoist duty motor
• Dual braking system - D.C. plus regenerative
• Rugged cast aluminum alloy hoist frame
• 5:1 design factor
• Small, compact design for commercial & industrial applications
• Rigid hook suspension is standard. Optional swivel hook suspension allows hook to rotate 360 degrees for easy attachment and positioning of the hoist in tight spaces.
• Hardened forged steel latch style lower hook rotates 360°
• Totally enclosed non-ventilated hoist frame protects motor from environmental contamination
• True vertical lift
• Precision bearings used throughout hoist
• Lifetime warranty
• Made in U.S.A.

CM Shopstar 300 lbs Electric Chain Hoist Specs

• Electric Phase: Single Phase & Three Phase
• Voltage: 115/1/60, 230/3/60, 430/3/60
• Motor HP: 1/6 HP
• Lifting Speed: 16 feet per minute
• Reeving: Single
• Capacity: 300 lbs
• Standard Lift: 10 ft. (15 & 20 ft. lift available)
• Suspension Type: Hook
• Head Room: 11 1/16 inches
• Brochure: CM Shopstar Electric Chain Hoist 300 lbs
• CAD Drawing 1 Part Reeved Shopstar Electric Chain Hoist with Hook Suspension DWG file
