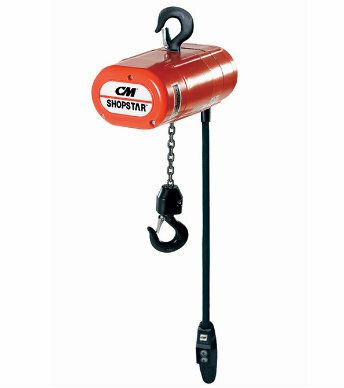

CM Shopstar Electric Chain Hoist 1000 lbs

1000 lbs 1/2 Ton Shopstar CM Electric Chain Hoist 2110

The 1/2 ton CM ShopStar electric chain hoist is built for rugged industrial and commercial use. This durable, 1,000 lb chain hoist features high H4 duty cycles and a compact design ideal for use at workstations and production lines. Standard overload device protects the hoist, operator and surrounding structure from damaging overloads.

CM Shopstar Electric Hoist 2110 1/2 ton Capacity Features & Benefits

• H4 duty cycle (300 motor starts/hour)
• Easy installation and maintenance
• Standard protector overload device
• 10 pocket oblique lay liftwheel provides longer chain wear
• Epoxy powder coat finish
• 6-1/2 ft. power cord with molded 3 prong plug on 115 volt units
• NEMA 4 industrial rated control station
• Optional impact-resistant chain container available
• Gear train lifetime lubricated with non-oxidizing grease
• CM Hoist Alloy Load Chain (zinc plated optional)
• Thermally protected hoist duty motor
• Dual braking system - D.C. plus regenerative
• Rugged cast aluminum alloy hoist frame
• 5:1 design factor
• Small, compact design for commercial & industrial applications
• Rigid hook suspension is standard. Optional swivel hook suspension allows hook to rotate 360 degrees for easy attachment and positioning of the hoist in tight spaces.
• Hardened forged steel latch style lower hook rotates 360°
• Totally enclosed non-ventilated hoist frame protects motor from environmental contamination
• True vertical lift
• Precision bearings used throughout hoist
• Lifetime warranty
• Made in U.S.A.

CM Shopstar 1,000 lbs Electric Chain Hoist Specs

• Electric Phase: Single Phase & Three Phase
• Voltage: 115/1/60,  230/3/60, 430/3/60
• Motor HP: 1/6 HP
• Lifting Speed: 6 feet per minute
• Reeving: Double
• Capacity: 1,000 lbs
• Standard Lift: 10 ft.
• Suspension Type: Hook
• Head Room: 11 15/16 inches
• Brochure: CM Shopstar Electric Chain Hoist 1000 lbs
• CAD Drawing 2 Part Reeved Shopstar Electric Chain Hoist with Hook Suspension  DWG file
