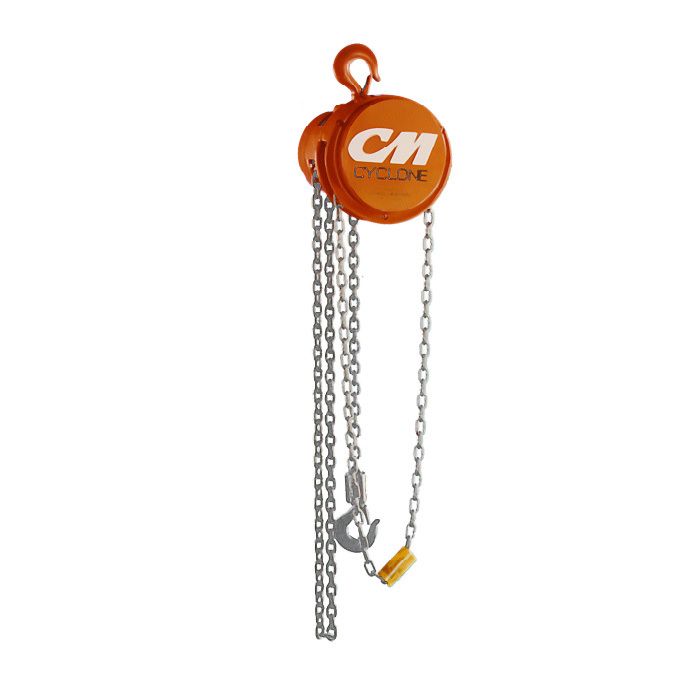

CM Cyclone Hand Chain Hoist 2 Ton; 10' Lift

2 Ton CM Cyclone Hand Chain Hoist 4626

One of the most popular and reliable hoists ever designed, the Cyclone combines superior engineering, efficiency and durability. The CM Cyclone 2 ton manual hand chain hoist is offered with lifts that range from 10 feet to 30 feet of lift. Available in a variety of capacities from 1/4 ton to 10 tons, Cyclone features:

CM Cyclone 2 Ton Manual Chain Hoist 4626 Features & Benefits

• Rugged steel loadbars connected directly to hoist frame
• Reduced headroom, side clearances and end approach for easy maneuvering of heavy loads in tight places
• Standard Load Limiter automatic overload protection
• Universal tread trolley wheels for operation on sloped or flat flanged beams
• Standard hand chain drop 2 feet less than lift (example: 8 foot lift hoist has 6 foot hand chain drop)
• Chain containers, zinc-plated load and hand chain, aluminum unwelded hand chain, Latchlok hooks, bronze hooks, bullard hooks, larger beam trolleys, trolley guards, and units without Load Limiter optional, depending on capacity
• Lifetime warranty
• Metric rated
• Made in U.S.A.

CM Cyclone 2 Ton Hoist Specs

• Model or Series: Cyclone
• Capacity: 2 Ton
• Standard Lift: 10 ft. (longer lifts available)
• Suspension: Hook
• Head Room: 17 5/16 inches
• Brochure: CM Cyclone Hand Chain Hoist 2 Ton
• CAD Drawing 2 Ton Cyclone CM Chain Hoist DWG file
