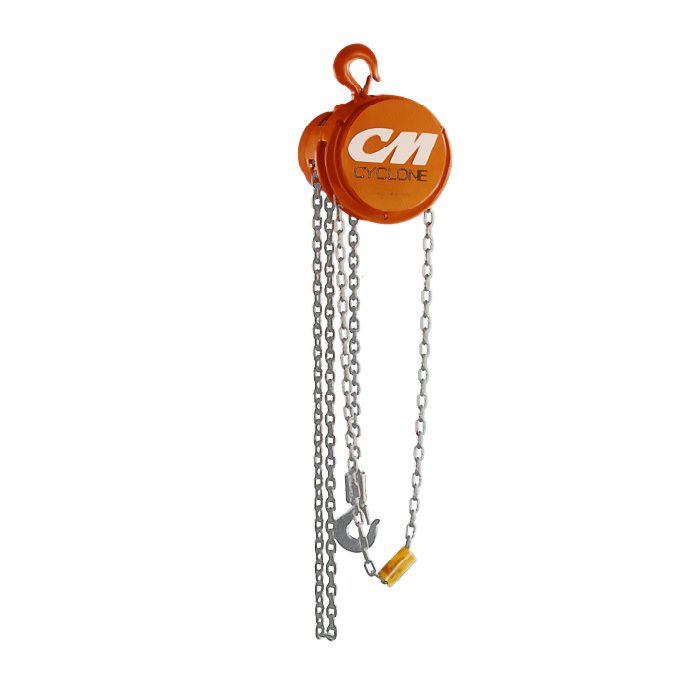

CM Cyclone Hand Chain Hoist 1 Ton; 10' Lift

1 Ton CM Cyclone Hand Chain Hoist 4624

One of the most popular and reliable hoists ever designed, the 1 Ton CM Cyclone hand chain hoist combines superior engineering, efficiency and durability. The CM 4624 hand chain hoist is available in a variety of lift heights that range from 10 feet to 30 feet.

1 Ton CM Manual Chain Hoist Features & Benefits

• Rugged steel loadbars connected directly to hoist frame
• Reduced headroom, side clearances and end approach for easy maneuvering of heavy loads in tight places
• Standard Load Limiter automatic overload protection
• Universal tread trolley wheels for operation on sloped or flat flanged beams
• Standard hand chain drop 2 feet less than lift (example: 8 foot lift hoist has 6 foot hand chain drop)
• Chain containers, zinc-plated load and hand chain, aluminum unwelded hand chain, Latchlok hooks, bronze hooks, bullard hooks, larger beam trolleys, trolley guards, and units without Load Limiter optional, depending on capacity
• Lifetime warranty
• Metric rated
• Made in U.S.A.

CM 4624 Cyclone 1 Ton Hoist Specs

• Model or Series: Cyclone
• Capacity: 1 Ton
• Standard Lift: 10 ft. (longer lifts available)
• Suspension: Hook
• Head Room: 14 inches
• Product Brochure: CM Cyclone Hand Chain Hoist 1 Ton
• CAD Drawing 1 Ton Cyclone CM Chain Hoist
