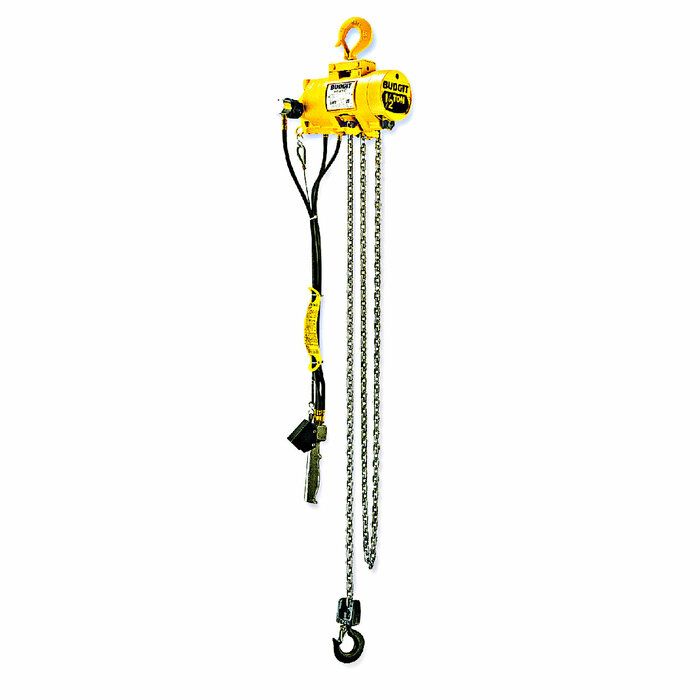

Budgit AirStar Hoist 1/2 Ton: 2200 Series

nan

Budgit AirStar Hoist 1/2 Ton: 2200 Series: Lift 10 feet - Lift Speed: 45 fpm

The half ton Budgit Series 2200 air hoists are small frame air chain hoists featuring accurate load spotting for specialized lifting applications. The 1/2 ton Budgit air chain hoist (part number BAHC5045-10) is an ideal lifting solution for manufacturing, power, and industrial facilities that require precise load spotting as part of production or warehousing.

• Pull cord control provides a lightweight, economical hoist for accurate control of loads
• Pendant throttle control hoists offer ergonomic one-handed controls, for ease of operation
• Inlet air swivel with built-in strainer provides free hoist movement
• Aluminum frame and end cover contributes to the lightweight, easily portable, and rugged design
• Heavy duty shoe type brake is a proven design for stopping and holding loads in heavy duty applications
• External adjustment screws for decreased lift and lower speeds
• External brake adjustment
• Limit stops prevent over-travel in upper and lowering directions
• Equa-torque gearing of alloy steel, heat treated spur gears is accurately machined to provide a close meshed, compact gear reduction
• Eight-vane motor provides high torque, smooth starting and excellent control
• Tapped exhaust port 1/2 NPTF... for CLEAN applications or to add a supplemental muffler in addition to the built-in muffler for even quieter operation

Product Brochure:

Click Here for Product Brochure: Budgit Air Chain Hoist 1/2 Ton 2200 Series
