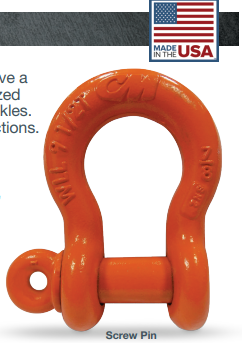

10 Ton CM Super Strong Anchor Shackle, Screw Pin, 1" Carbon
10 Ton Columbus Mckinnon Super Strong Shackles are 1 inch carbon-type shackles with strength ratings that are 17 to 50% stronger than comparable-sized carbon shackles. As a result, these shackles are designed with a 6:1 design factor. CM Anchor shackles can be side loaded or used for multiple connections.
Manufactured from technically advanced micro alloy steel with optimal hardness for strength and ductility
10 ton shackles show major deformation before failure
Working load limit and traceability codes shown as permanent markings on body
All shackles have alloy quenched and tempered pins
Available in sizes 3/16" to 2-1/2"
Available finishes include powder coated, galvanized or self-colored
Shackles meet dimensional requirements and exceed performance requirements of RR-C-271
Special testing and certification is available upon request at the time of the order
Note: Screw pin and bolt/nut/cotter shackles have a 6:1 design factor. Round pin shackles have 5:1 design factor
CM Smart ID RFID technology is available as an option on screw pin anchor shackles sizes 1/2" to 1-3/4" and bolt, nut & cotter shackles sizes 3/4" to 1-3/4"
